MObject Class Reference

Root object that establishes dynamic class information, dynamic property and method handling and marshaling. More...

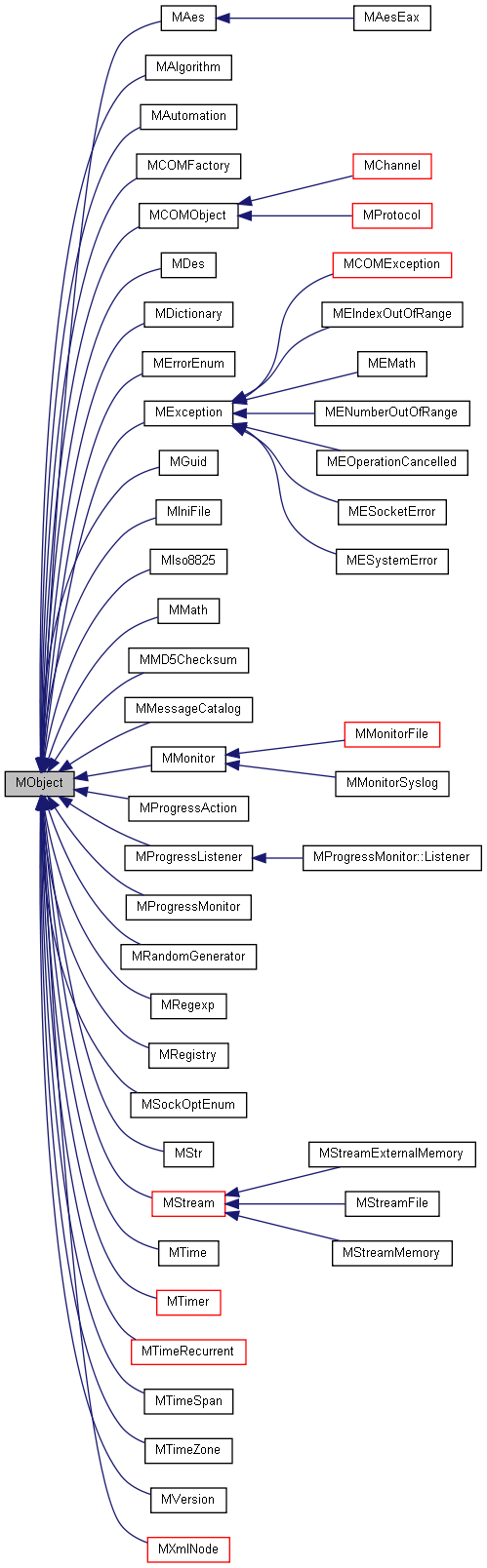

Inheritance diagram for MObject:

Public Member Functions
virtual	~MObject ()
	Object destructor.
virtual const MClass *	GetClass () const =0
	Get the final class of the object. More...
virtual unsigned	GetEmbeddedSizeof () const
	For embedded object types, return the size of the class. More...
bool	IsEmbeddedObject () const
	Tell if the object is of embedded kind. More...
SHOW_INTERNAL MVariant	Call (const MStdString &name, const MVariant &params)
	Call the object service with parameters, given as variant. More...
MVariant	Call0 (const MStdString &name)
	Call the object service with no parameters. More...
MVariant	Call1 (const MStdString &name, const MVariant &p1)
	Call the object service with one parameter. More...
MVariant	Call2 (const MStdString &name, const MVariant &p1, const MVariant &p2)
	Call the object service with two parameter. More...
MVariant	Call3 (const MStdString &name, const MVariant &p1, const MVariant &p2, const MVariant &p3)
	Call the object service with three parameter. More...
MVariant	Call4 (const MStdString &name, const MVariant &p1, const MVariant &p2, const MVariant &p3, const MVariant &p4)
	Call the object service with four parameter. More...
MVariant	Call5 (const MStdString &name, const MVariant &p1, const MVariant &p2, const MVariant &p3, const MVariant &p4, const MVariant &p5)
	Call the object service with five parameter. More...
MVariant	Call6 (const MStdString &name, const MVariant &p1, const MVariant &p2, const MVariant &p3, const MVariant &p4, const MVariant &p5, const MVariant &p6)
	Call the object service with six parameter. More...
virtual MVariant	CallV (const MStdString &name, const MVariant::VariantVector &params)
	Call the object service with parameters, given as variant vector. More...
virtual bool	IsPropertyPresent (const MStdString &name) const
	Tell if the property with the given name exists.
virtual bool	IsServicePresent (const MStdString &name) const
	Tell if the service with the given name exists.
virtual MVariant	GetProperty (const MStdString &name) const
	Get the property value using name of the property. More...
virtual void	SetProperty (const MStdString &name, const MVariant &value)
	Set the property using name of the property, and value. More...
virtual MStdStringVector	GetAllPropertyNames () const
	Return the list of publicly available properties, persistent or not. More...
virtual MStdStringVector	GetAllPersistentPropertyNames () const
	Return the list of persistent properties. More...
virtual void	SetPersistentPropertiesToDefault ()
	Set the persistent properties of the object to their default values. More...
virtual MVariant	GetPersistentPropertyDefaultValue (const MStdString &name) const
	Get the default value of persistent property with the name given. More...
virtual void	SetPersistentPropertyToDefault (const MStdString &name)
	Set the persistent property with the name given to default value. More...
virtual const char *	GetType () const
	Get the name of the type for the object (could be the same as class name).
virtual void	SetType (const MStdString &)
	Intentionally, it will set the name of the type for the object, but the service will not allow setting the name to anything other than the current name. More...
virtual void	Validate ()
	Validate internal structures of the object. More...

Static Public Member Functions
static const MClass *	GetStaticClass ()
	Get the declared class of this particular object. More...
static bool	IsClassPresent (const MStdString &name)
	Tells if the given class name is available. More...

Static Public Attributes
static const MClass	s_class
	Class of MObject.

Protected Member Functions
	MObject ()
	Object constructor, protected as the class is abstract.
void	DoSetPersistentPropertiesToDefault (const MClass *staticClass)
	Set the persistent properties to their default values for one object provided the class for that object. More...

Detailed Description

Root object that establishes dynamic class information, dynamic property and method handling and marshaling.

The class is an abstract base.

The derived objects have type names available from the abstract service GetType.

This class allows for having a number of properties and methods to be publicly defined, and available through their names. This is done by implementation of the the dynamic dispatching mechanism alternative to the semi-static virtual C++ dispatching.

The children of this class should have a macro M_DECLARE_*_CLASS at the end of their declaration, and a set of M_PROPERTY_ macros in the implementation CPP file. They should define the properties publicly available.

Here is an example of some MObject abstract child:

// File SomeObject.h
class MSomeObject : public MObject
{
public:
   MSomeObject();
   virtual ~MSomeObject();

   int GetSpeed() const;         // Get integer property method
   void SetSpeed(int);           // Set integer property method
   unsigned GetDeviceID() const; // Get device ID, Get-only

private:
   M_DECLARE_CLASS(SomeObject)
};

// File SomeObject.cpp
#include <MCORE/MCOREExtern.h>
#include "SomeObject.h"
....
M_START_PROPERTIES(SomeObject)
   M_OBJECT_PROPERTY_PERSISTENT_INT(SomeObject, Speed, 9600)
   M_OBJECT_PROPERTY_READONLY_UINT (SomeObject, DeviceId, 0) // Get-only property
M_START_METHODS(SomeObject)
M_END_CLASS(SomeObject, Object)

Here is an example of some MObject child:

// File MSomeProtocol.h
class MSomeProtocol : public MObject
{
public:
   MSomeProtocol();
   virtual ~MSomeProtocol();

   int GetSpeed() const;         // Get integer property method
   void SetSpeed(int);           // Set integer property method
   unsigned GetDeviceID() const; // Get device ID, Get-only

private:
   M_DECLARE_CLASS(SomeProtocol)
};

// File SomeProtocol.cpp
#include <MCORE/MCOREExtern.h>
#include "SomeProtocol.h"
....
M_START_PROPERTIES(SomeProtocol)
   M_OBJECT_PROPERTY_PERSISTENT_INT(SomeProtocol, Speed, 9600)
   M_OBJECT_PROPERTY_READONLY_UINT (SomeProtocol, DeviceId) // Get-only property
M_START_METHODS(SomeProtocol)
M_END_CLASS(SomeProtocol, Object)

The _EXACT class declarations do not add M prefix to their names given. The _TYPED class declarations make type and class names different for the class definition.

There is one property defined for the class. This is TYPE, which gives the standard string, representation of the type (class).

Member Function Documentation

SHOW_INTERNAL MVariant MObject::Call	(	const MStdString &	name,
		const MVariant &	params
	)

Call the object service with parameters, given as variant.

Parameters can be Empty variant, which will mean no parameters; a variant vector, which will be the vector of parameters; or it can be one single parameter.

Precondition

The service with such name should exist, and the number of parameters should be equal to one supported by the call, otherwise an exception is thrown. The preconditions of the particular service apply.

See also

CallV which unconditionally takes the vector of parameters.

MVariant MObject::Call0

(

const MStdString &

name

)

Call the object service with no parameters.

Precondition

The service with such name should exist, and shall have no parameters, otherwise an exception is thrown. The preconditions of the particular service apply.

See also

CallV which unconditionally takes the variant as parameters

Call that takes a variant

Call1 that takes a variant with 1 parameter

Call2 that takes a variant with 2 parameters

Call3 that takes a variant with 3 parameters

Call4 that takes a variant with 4 parameters

Call5 that takes a variant with 5 parameters

Call6 that takes a variant with 6 parameters

MVariant MObject::Call1	(	const MStdString &	name,
		const MVariant &	p1
	)

Call the object service with one parameter.

The clients have to provide CallV as implementation.

Precondition

The service with such name should exist, and shall have no parameters, otherwise an exception is thrown. The preconditions of the particular service apply.

See also

CallV which unconditionally takes the variant as parameters

Call that takes a variant

Call0 that takes a variant with no parameters

Call2 that takes a variant with 2 parameters

Call3 that takes a variant with 3 parameters

Call4 that takes a variant with 4 parameters

Call5 that takes a variant with 5 parameters

Call6 that takes a variant with 6 parameters

MVariant MObject::Call2	(	const MStdString &	name,
		const MVariant &	p1,
		const MVariant &	p2
	)

Call the object service with two parameter.

The clients have to provide CallV as implementation.

Precondition

The service with such name should exist, and shall have no parameters, otherwise an exception is thrown. The preconditions of the particular service apply.

See also

CallV which unconditionally takes the variant as parameters

Call that takes a variant

Call0 that takes a variant with no parameters

Call1 that takes a variant with 1 parameter

Call3 that takes a variant with 3 parameters

Call4 that takes a variant with 4 parameters

Call5 that takes a variant with 5 parameters

Call6 that takes a variant with 6 parameters

MVariant MObject::Call3	(	const MStdString &	name,
		const MVariant &	p1,
		const MVariant &	p2,
		const MVariant &	p3
	)

Call the object service with three parameter.

The clients have to provide CallV as implementation.

Precondition

The service with such name should exist, and shall have no parameters, otherwise an exception is thrown. The preconditions of the particular service apply.

See also

CallV which unconditionally takes the variant as parameters

Call that takes a variant

Call0 that takes a variant with no parameters

Call1 that takes a variant with 1 parameter

Call2 that takes a variant with 2 parameters

Call4 that takes a variant with 4 parameters

Call5 that takes a variant with 5 parameters

Call6 that takes a variant with 6 parameters

MVariant MObject::Call4	(	const MStdString &	name,
		const MVariant &	p1,
		const MVariant &	p2,
		const MVariant &	p3,
		const MVariant &	p4
	)

Call the object service with four parameter.

The clients have to provide CallV as implementation.

Precondition

The service with such name should exist, and shall have no parameters, otherwise an exception is thrown. The preconditions of the particular service apply.

See also

CallV which unconditionally takes the variant as parameters

Call that takes a variant

Call0 that takes a variant with no parameters

Call1 that takes a variant with 1 parameter

Call2 that takes a variant with 2 parameters

Call3 that takes a variant with 3 parameters

Call5 that takes a variant with 5 parameters

Call6 that takes a variant with 6 parameters

MVariant MObject::Call5	(	const MStdString &	name,
		const MVariant &	p1,
		const MVariant &	p2,
		const MVariant &	p3,
		const MVariant &	p4,
		const MVariant &	p5
	)

Call the object service with five parameter.

The clients have to provide CallV as implementation.

Precondition

The service with such name should exist, and shall have no parameters, otherwise an exception is thrown. The preconditions of the particular service apply.

See also

CallV which unconditionally takes the variant as parameters

Call that takes a variant

Call0 that takes a variant with no parameters

Call1 that takes a variant with 1 parameter

Call2 that takes a variant with 2 parameters

Call3 that takes a variant with 3 parameters

Call4 that takes a variant with 4 parameters

Call6 that takes a variant with 6 parameters

MVariant MObject::Call6	(	const MStdString &	name,
		const MVariant &	p1,
		const MVariant &	p2,
		const MVariant &	p3,
		const MVariant &	p4,
		const MVariant &	p5,
		const MVariant &	p6
	)

Call the object service with six parameter.

The clients have to provide CallV as implementation.

Precondition

The service with such name should exist, and shall have no parameters, otherwise an exception is thrown. The preconditions of the particular service apply.

See also

CallV which unconditionally takes the variant as parameters

Call that takes a variant

Call0 that takes a variant with no parameters

Call1 that takes a variant with 1 parameter

Call2 that takes a variant with 2 parameters

Call3 that takes a variant with 3 parameters

Call4 that takes a variant with 4 parameters

Call5 that takes a variant with 5 parameters

virtual MVariant MObject::CallV ( const MStdString &  name, const MVariant::VariantVector &  params  )

virtual

Call the object service with parameters, given as variant vector.

Precondition

The service with such name should exist, and the number of parameters should be equal to one supported by the call, otherwise an exception is thrown. The preconditions of the particular service apply.

See also

Call that takes a variant

Call0 that takes a variant with no parameters

Call1 that takes a variant with 1 parameter

Call2 that takes a variant with 2 parameters

Call3 that takes a variant with 3 parameters

Call4 that takes a variant with 4 parameters

Call5 that takes a variant with 5 parameters

Call6 that takes a variant with 6 parameters

Reimplemented in MAutomation.

void MObject::DoSetPersistentPropertiesToDefault ( const MClass *  staticClass )

protected

Set the persistent properties to their default values for one object provided the class for that object.

This service is for calling it from constructors. A typical parameter is the static class of the object. The parameters for the parent properties are not touched. This is not a virtual service!

Parameters

staticClass

Pointer to a class of this object, typically m_class

See also

M_SET_PERSISTENT_PROPERTIES_TO_DEFAULT Easiest way to call this method

virtual MStdStringVector MObject::GetAllPersistentPropertyNames ( ) const

virtual

Return the list of persistent properties.

See also

GetAllPropertyNames for the list of all properties

Reimplemented in MCOMObject.

virtual MStdStringVector MObject::GetAllPropertyNames ( ) const

virtual

Return the list of publicly available properties, persistent or not.

See also

GetAllPersistentPropertyNames for persistent properties only

Reimplemented in MCOMObject.

virtual const MClass* MObject::GetClass ( ) const

pure virtual

Get the final class of the object.

Do not overload this service explicitly. It is done automatically within the appropriate implementation macros.

Precondition

This particular service is pure virtual, and should not be called explicitly.

virtual unsigned MObject::GetEmbeddedSizeof ( ) const

virtual

For embedded object types, return the size of the class.

For regular, not embedded types, this is zero, which is the default implementation.

Returns

size of embedded object in bytes, or zero if the object is not embedded

Reimplemented in MTime, MVersion, MTimeRecurrentYearly, MTimeSpan, MGuid, and MTimer.

virtual MVariant MObject::GetPersistentPropertyDefaultValue ( const MStdString &  name ) const

virtual

Get the default value of persistent property with the name given.

Precondition

The object should have the property with such name, and this property should have a default value (be persistent). Otherwise an exception is thrown.

virtual MVariant MObject::GetProperty ( const MStdString &  name ) const

virtual

Get the property value using name of the property.

The service allows extensions in children objects.

Precondition

The property with such name should exist, otherwise an exception will be thrown. The property value should be available at the time the service is called, or the value-related exception can be thrown.

See also

MClass::GetPropertyDefinition returns the constant pointer to the definition of the property with a name given.

Reimplemented in MAutomation.

static const MClass* MObject::GetStaticClass ( )

inlinestatic

Get the declared class of this particular object.

This service is defined explicitly with the reflection support macros.

static bool MObject::IsClassPresent ( const MStdString &  name )

inlinestatic

Tells if the given class name is available.

The call uses the reflection mechanism to tell if the class name exists

Parameters

name	Class name to test

Returns

True is returned if the given class is available, False otherwise

bool MObject::IsEmbeddedObject ( ) const

inline

Tell if the object is of embedded kind.

Embedded objects are value types, those that can be copied and compared by simple memory copy and comparison.

Returns

True means the object is of an embedded kind, and it can be manipulated by value

virtual void MObject::SetPersistentPropertiesToDefault ( )

virtual

Set the persistent properties of the object to their default values.

Also look at DoSetPersistentPropertiesToDefault that is typically used in constructors of MObject parents that have persistent properties.

Precondition

The object is built completely, will not work in constructor or destructor due to incomplete virtual table.

virtual void MObject::SetPersistentPropertyToDefault ( const MStdString &  name )

virtual

Set the persistent property with the name given to default value.

If the persistent property does exist, the error never results from setting the value to this property, as it is the duty of the application developer to ensure that the value is correct (the assertion is in place for debug version).

Precondition

The object should have the property with such name, and this property should have a default value (be persistent). Otherwise an exception is thrown.

virtual void MObject::SetProperty ( const MStdString &  name, const MVariant &  value  )

virtual

Set the property using name of the property, and value.

The service allows extensions in children objects.

Precondition

The property with such name should exist, otherwise an exception will be thrown. Any value-related or object-related exception can be thrown in case the given value has wrong type, or it is invalid, or the value cannot be set at this moment.

Reimplemented in MAutomation.

virtual void MObject::SetType ( const MStdString &  )

virtual

Intentionally, it will set the name of the type for the object, but the service will not allow setting the name to anything other than the current name.

Precondition

The name supplied should match exactly the one which is got by GetType, otherwise the exception takes place.

virtual void MObject::Validate ( )

virtual

Validate internal structures of the object.

Precondition

The object is properly initialized.
