Root communication object that defines default property handling and configuration location. More...

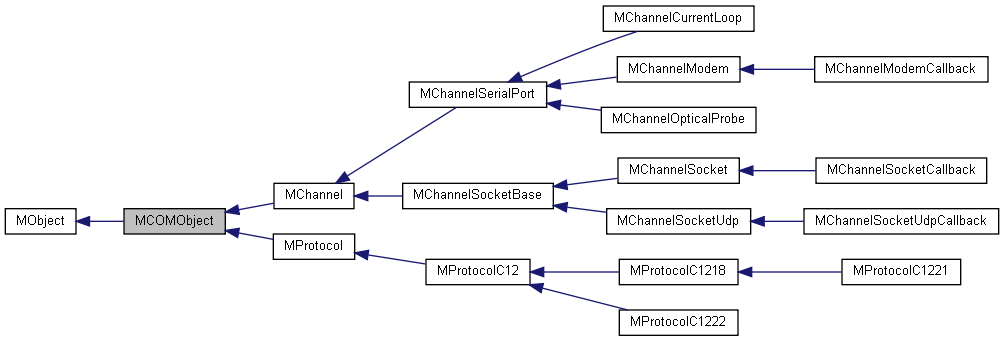

Inheritance diagram for MCOMObject:

[legend]

Public Member Functions
virtual MCOMObject *	CreateClone () const
	Virtual abstract copy constructor, creates MCOM object.

virtual	~MCOMObject ()
	Object destructor.

virtual MStdStringVector	GetAllPropertyNames () const
	Return the list of publicly available properties in MCOM syntax. More...

virtual MStdStringVector	GetAllPersistentPropertyNames () const
	Return the list of publicly available persistent properties in MCOM syntax. More...

MStdString	GetPersistentPropertyValues (bool onlyNondefaults=false, bool excludeSecurityRelated=false) const
	Get the string with the list of persistent property names and their values. More...

void	SetPersistentPropertyValues (const MStdString &values)
	Set the persistent properties for the object using the string with the following format: More...

void	SetPropertyValues (const MDictionary &values)
	Set the properties for the object using the property list object. More...

virtual void	WriteToMonitor (const MStdString &message)
	Synchronously write a message to the monitor, if it is connected. More...

void	WritePropertiesToMonitor ()
	Write all non-default values of protocol properties into monitor. More...

MStdString	DoGetPersistentPropertyValues0 () const
	Get the string with the whole list of persistent property names and their values. More...

MStdString	DoGetPersistentPropertyValues1 (bool onlyNondefaults) const
	Get the string with the list of persistent property names and their values. More...

Public Member Functions inherited from MObject
virtual	~MObject ()
	Object destructor.

virtual const MClass *	GetClass () const =0
	Get the final class of the object. More...

virtual unsigned	GetEmbeddedSizeof () const
	For embedded object types, return the size of the class. More...

bool	IsEmbeddedObject () const
	Tell if the object is of embedded kind. More...

SHOW_INTERNAL MVariant	Call (const MStdString &name, const MVariant &params)
	Call the object service with parameters, given as variant. More...

MVariant	Call0 (const MStdString &name)
	Call the object service with no parameters. More...

MVariant	Call1 (const MStdString &name, const MVariant &p1)
	Call the object service with one parameter. More...

MVariant	Call2 (const MStdString &name, const MVariant &p1, const MVariant &p2)
	Call the object service with two parameter. More...

MVariant	Call3 (const MStdString &name, const MVariant &p1, const MVariant &p2, const MVariant &p3)
	Call the object service with three parameter. More...

MVariant	Call4 (const MStdString &name, const MVariant &p1, const MVariant &p2, const MVariant &p3, const MVariant &p4)
	Call the object service with four parameter. More...

MVariant	Call5 (const MStdString &name, const MVariant &p1, const MVariant &p2, const MVariant &p3, const MVariant &p4, const MVariant &p5)
	Call the object service with five parameter. More...

MVariant	Call6 (const MStdString &name, const MVariant &p1, const MVariant &p2, const MVariant &p3, const MVariant &p4, const MVariant &p5, const MVariant &p6)
	Call the object service with six parameter. More...

virtual MVariant	CallV (const MStdString &name, const MVariant::VariantVector &params)
	Call the object service with parameters, given as variant vector. More...

virtual bool	IsPropertyPresent (const MStdString &name) const
	Tell if the property with the given name exists.

virtual bool	IsServicePresent (const MStdString &name) const
	Tell if the service with the given name exists.

virtual MVariant	GetProperty (const MStdString &name) const
	Get the property value using name of the property. More...

virtual void	SetProperty (const MStdString &name, const MVariant &value)
	Set the property using name of the property, and value. More...

virtual void	SetPersistentPropertiesToDefault ()
	Set the persistent properties of the object to their default values. More...

virtual MVariant	GetPersistentPropertyDefaultValue (const MStdString &name) const
	Get the default value of persistent property with the name given. More...

virtual void	SetPersistentPropertyToDefault (const MStdString &name)
	Set the persistent property with the name given to default value. More...

virtual const char *	GetType () const
	Get the name of the type for the object (could be the same as class name).

virtual void	SetType (const MStdString &)
	Intentionally, it will set the name of the type for the object, but the service will not allow setting the name to anything other than the current name. More...

virtual void	Validate ()
	Validate internal structures of the object. More...

Protected Member Functions
	MCOMObject ()
	Object constructor, protected as the class is abstract.

Protected Member Functions inherited from MObject
	MObject ()
	Object constructor, protected as the class is abstract.

void	DoSetPersistentPropertiesToDefault (const MClass *staticClass)
	Set the persistent properties to their default values for one object provided the class for that object. More...

Additional Inherited Members
Static Public Member Functions inherited from MObject
static const MClass *	GetStaticClass ()
	Get the declared class of this particular object. More...

static bool	IsClassPresent (const MStdString &name)
	Tells if the given class name is available. More...

Static Public Attributes inherited from MObject
static const MClass	s_class
	Class of MObject.

Detailed Description

Root communication object that defines default property handling and configuration location.

It is also able to stream the persistent properties into string.

There are no new public properties defined within this class, only those which are in MObject.

Member Function Documentation

MStdString MCOMObject::DoGetPersistentPropertyValues0 ( ) const

Get the string with the whole list of persistent property names and their values.

Non-default values and security properties are all included. The string has the following format:

PROPERTY1=value1;PROPERTY2=value2;....

Where PROPERTY1, PROPERTY2, ... are property names, value1, value2 ... are their values. In case the property is of string type, the correspondent value is enclosed in quotes, and it can have C-like escape sequences.

Returns: String representing the values of the properties

MStdString MCOMObject::DoGetPersistentPropertyValues1 ( bool onlyNondefaults ) const

Get the string with the list of persistent property names and their values.

Security properties are included. The string has the following format:

PROPERTY1=value1;PROPERTY2=value2;....

Where PROPERTY1, PROPERTY2, ... are property names, value1, value2 ... are their values. In case the property is of string type, the correspondent value is enclosed in quotes, and it can have C-like escape sequences.

Parameters

onlyNondefaults If true, only TYPE and non-default properties are returned.

Returns: String representing the values of the properties.

virtual MStdStringVector MCOMObject::GetAllPersistentPropertyNames ( ) const

virtual

Return the list of publicly available persistent properties in MCOM syntax.

In contrast with the original MCORE implementation, the property names will all be uppercased and name separation will be done with underscores. For all properties, persistent and dynamic, one can use GetAllPropertyNames.

Reimplemented from MObject.

virtual MStdStringVector MCOMObject::GetAllPropertyNames ( ) const

virtual

Return the list of publicly available properties in MCOM syntax.

In contrast with the original MCORE implementation, the property names will all be uppercased and name separation will be done with underscores. For persistent properties, one can use GetAllPersistentPropertyNames.

Reimplemented from MObject.

MStdString MCOMObject::GetPersistentPropertyValues	(	bool	onlyNondefaults = `false`,
		bool	excludeSecurityRelated = `false`
	)		const

Get the string with the list of persistent property names and their values.

The string has the following format:

PROPERTY1=value1;PROPERTY2=value2;....

Where PROPERTY1, PROPERTY2, ... are property names, value1, value2 ... are their values. In case the property is of string type, the correspondent value is enclosed in quotes, and it can have C-like escape sequences.

Parameters

onlyNondefaults	If true, only TYPE and non-default properties are returned.
excludeSecurityRelated	If true, do not return values of PASSWORD, AUTHENTICATION_KEY and SECURITY_KEY properties if these are present in the protocol.

Returns: String representing the values of the properties.

void MCOMObject::SetPersistentPropertyValues ( const MStdString & values )

Set the persistent properties for the object using the string with the following format:

PROPERTY1=value1;PROPERTY2=value2;....

Where PROPERTY1, PROPERTY2, ... are property names, value1, value2 ... are their values.

In case the property is of string type, the correspondent value should be enclosed in quotes, and it can have C-like escape sequences.

The order for the properties is not significant. It is not required that all object properties are present. In case the property is not present, its value will not be changed.

Precondition: The properties mentioned should exist for the object, and the values given to those properties should be valid. No properties in the list can be Get-only. Otherwise this service throws an appropriate exception. Only those properties are set to the object, which were mentioned before the offending property.

void MCOMObject::SetPropertyValues ( const MDictionary & values )

Set the properties for the object using the property list object.

The order for the properties is not significant. It is not required that all object properties are present. In case the property is not present, its value will not be changed.

Precondition: The properties mentioned should exist for the object, and the values given to those properties should be valid. No properties in the list can be Get-only. Otherwise this service throws an appropriate exception. In case the exception is thrown, only those properties are set to the object, which were mentioned before the offending property.

void MCOMObject::WritePropertiesToMonitor ( )

Write all non-default values of protocol properties into monitor.

This is a convenience method for all types of troubleshooting. No errors are thrown. If there is no monitor connected, nothing is done.

virtual void MCOMObject::WriteToMonitor ( const MStdString & message )

virtual

Synchronously write a message to the monitor, if it is connected.

No error is thrown if the Monitor is not running or the Monitor log file is not accumulating.

Parameters

message The message to write to the Monitor and the Monitor log file.

Reimplemented in MProtocol, and MChannel.
