Implements the channel interface for an UDP datagram socket. More...

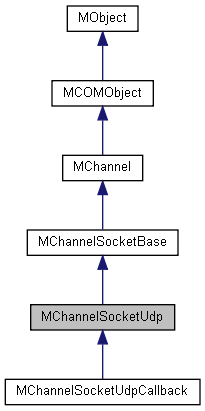

Inheritance diagram for MChannelSocketUdp:

[legend]

Public Types
enum	{ MaximumUdpDatagramSize = 1500 }

Public Types inherited from MChannel
enum	{ CANCEL_COMMUNICATION_CHECK_OPTIMUM_INTERVAL = 1000 }

Public Member Functions
	MChannelSocketUdp ()
	Construct the socket channel.

virtual	~MChannelSocketUdp ()
	Destructor.

virtual void	Connect ()
	Establishes connection to the meter using a socket. More...

virtual void	WaitForNextIncomingConnection (bool reinitialize=true)
	When GetAutoAnswer true, wait for the incoming connection without disconnecting the channel. More...

void	WriteDatagramBuffer (const char *buff, unsigned size)
	Send the whole datagram given as data pointer and size into the UDP socket. More...

void	WriteDatagram (const MByteString &bytes)
	Send the whole datagram to the UDP socket. More...

unsigned	ReadDatagramBuffer (char *buff, unsigned size)
	Receive the datagram given as data pointer and size. More...

MByteString	ReadDatagram ()
	Receive the datagram. More...

const MStreamSocketUdp &	GetSocketConst () const
	Get the constant socket object that is used by this channel.


MStreamSocketUdp &	GetSocket ()

virtual void	SetSocket (MStreamSocketBase &other)

Public Member Functions inherited from MChannelSocketBase
virtual	~MChannelSocketBase ()
	Destructor.

virtual bool	IsConnected () const
	Returns the current state of the socket channel.

virtual void	Disconnect ()
	Partly implemented disconnect method, overridden by children. More...

const MStreamSocketBase &	GetSocketConst () const
	Get the constant socket object that is used by this channel.

MStdString	GetActualLocalAddress () const
	Get the actual address of the local socket as it is known by Sockets. More...

unsigned	GetActualLocalPort () const
	Get the actual port number of the local socket as it is known by Sockets. More...

MStdString	GetActualPeerAddress () const
	Get the actual address of the peer socket as it is known by Sockets. More...

unsigned	GetActualPeerPort () const
	Get the actual port number of the peer socket as it is known by Sockets. More...

virtual void	FlushOutputBuffer (unsigned numberOfCharsInBuffer=UINT_MAX)
	Ensure that the characters from the output buffer are sent. More...

virtual MStdString	GetMediaIdentification () const
	Return a string that identifies the media through which this channel is talking. More...

unsigned	GetAutoAnswerPort () const

void	SetAutoAnswerPort (unsigned port)

const MStdString &	GetAutoAnswerAddress () const

void	SetAutoAnswerAddress (const MStdString &addr)

MStreamSocketBase &	GetSocket ()

const MStdString &	GetPeerAddress () const

void	SetPeerAddress (const MStdString &addr)

unsigned	GetPeerPort () const

void	SetPeerPort (unsigned port)

Public Member Functions inherited from MChannel
virtual MChannel *	CreateClone () const
	Virtual copy constructor, creates the channel, which is a clone of current. More...

virtual	~MChannel ()
	The destructor is public, and virtual. More...

void	WriteBytes (const MByteString &buffer)
	Writes the data to the channel, and returns when the last byte has been sent by the software. More...

void	WriteByte (Muint8 b)
	Writes a byte to the channel, and returns when it has been sent. More...

void	WriteBuffer (const char *buf, unsigned len)
	Writes the data buffer to the channel, and returns when the last character has been sent by the software (but hardware might still need to do some work). More...

Muint8	ReadByte ()
	Read a single byte from the channel. More...

void	ReadBuffer (char *buf, unsigned numberToRead)
	Read an exact number of characters from the channel. More...

void	Unread (const MVariant &byteOrBytes)
	Return the given byte or bytes to the stream buffer so they get read at the next read operation. More...

void	UnreadBuffer (const char *buff, unsigned size)
	Return the given bytes to the stream buffer so they get read at the next read operation. More...

MByteString	ReadBytes (unsigned numberToRead)
	Read bytes directly from the communication channel. More...

MByteString	ReadBytesUntil (const MByteString &terminatingString)
	Read bytes from the channel until a specified sequence is read. More...

MByteString	ReadBytesUntilAnyByte (const char *finisher, unsigned finisherSize, unsigned headerSize, unsigned footerSize)
	Read bytes from the channel until a specified sequence is read. More...

MByteString	ReadAllBytes ()
	Read an arbitrary number of characters from the channel, as much as available. More...

void	ClearInputBuffer ()
	Immediately discards all the pending characters from the channel. More...

void	ClearInputUntilSilence (unsigned milliseconds)
	Keep reading and ignoring input until there is silence. More...

virtual void	CheckIfConnected ()
	Throw an appropriate exception if the channel is not connected. More...

void	CheckIfConnectedConst () const
	Throw an appropriate exception if the channel is not connected, constant version. More...

unsigned	GetCountBytesSent () const
	Number of bytes sent through the channel since its creation or since the last ResetCounts(). More...

unsigned	GetCountBytesReceived () const
	The number of bytes received through the channel since creation or since the last ResetCounts(). More...

void	ResetCounts ()
	Reset channel statistical data, so the counters become zeros. More...

virtual void	WriteToMonitor (const MStdString &message)
	Synchronously write a message to the monitor, if it is connected. More...

virtual void	CancelCommunication (bool callDisconnect=false)
	Request canceling of the communication. More...

void	EnterUninterruptibleCommunication (bool notify=true)
	Enter a communication sequence that shall not be be interrupted with CancelCommunication call. More...

void	LeaveUninterruptibleCommunication (bool notify=true)
	Leave a communication sequence that shall not be be interrupted with CancelCommunication call. More...

void	CheckIfOperationIsCancelled ()
	Check if the user has requested the termination of the communication, and whether the cancel operation lock is zero. More...

void	Sleep (unsigned milliseconds)
	Channel version of Sleep, a delay function that is aware of cancel communication event. More...

unsigned	ReadWithTimeout (char *buf, unsigned size, unsigned timeout)
	Read up to size bytes into buffer using the given timeout. More...

bool	GetAutoAnswer () const

void	SetAutoAnswer (bool isAutoAnswer)

unsigned	GetAutoAnswerTimeout () const

void	SetAutoAnswerTimeout (unsigned timeout)

void	SetMonitor (MMonitor::Pointer monitor)

MMonitor::Pointer	GetMonitor () const

SHOW_INTERNAL bool	GetEcho () const

void	SetEcho (bool echo)

bool	GetSendEchoBytesToMonitor () const

void	SetSendEchoBytesToMonitor (bool doSend)

unsigned	GetIntercharacterTimeout () const

void	SetIntercharacterTimeout (unsigned timeout)

unsigned	GetReadTimeout () const

void	SetReadTimeout (unsigned timeout)

unsigned	GetWriteTimeout () const

void	SetWriteTimeout (unsigned timeout)

Public Member Functions inherited from MCOMObject
virtual	~MCOMObject ()
	Object destructor.

virtual MStdStringVector	GetAllPropertyNames () const
	Return the list of publicly available properties in MCOM syntax. More...

virtual MStdStringVector	GetAllPersistentPropertyNames () const
	Return the list of publicly available persistent properties in MCOM syntax. More...

MStdString	GetPersistentPropertyValues (bool onlyNondefaults=false, bool excludeSecurityRelated=false) const
	Get the string with the list of persistent property names and their values. More...

void	SetPersistentPropertyValues (const MStdString &values)
	Set the persistent properties for the object using the string with the following format: More...

void	SetPropertyValues (const MDictionary &values)
	Set the properties for the object using the property list object. More...

void	WritePropertiesToMonitor ()
	Write all non-default values of protocol properties into monitor. More...

MStdString	DoGetPersistentPropertyValues0 () const
	Get the string with the whole list of persistent property names and their values. More...

MStdString	DoGetPersistentPropertyValues1 (bool onlyNondefaults) const
	Get the string with the list of persistent property names and their values. More...

Public Member Functions inherited from MObject
virtual	~MObject ()
	Object destructor.

virtual const MClass *	GetClass () const =0
	Get the final class of the object. More...

virtual unsigned	GetEmbeddedSizeof () const
	For embedded object types, return the size of the class. More...

bool	IsEmbeddedObject () const
	Tell if the object is of embedded kind. More...

SHOW_INTERNAL MVariant	Call (const MStdString &name, const MVariant &params)
	Call the object service with parameters, given as variant. More...

MVariant	Call0 (const MStdString &name)
	Call the object service with no parameters. More...

MVariant	Call1 (const MStdString &name, const MVariant &p1)
	Call the object service with one parameter. More...

MVariant	Call2 (const MStdString &name, const MVariant &p1, const MVariant &p2)
	Call the object service with two parameter. More...

MVariant	Call3 (const MStdString &name, const MVariant &p1, const MVariant &p2, const MVariant &p3)
	Call the object service with three parameter. More...

MVariant	Call4 (const MStdString &name, const MVariant &p1, const MVariant &p2, const MVariant &p3, const MVariant &p4)
	Call the object service with four parameter. More...

MVariant	Call5 (const MStdString &name, const MVariant &p1, const MVariant &p2, const MVariant &p3, const MVariant &p4, const MVariant &p5)
	Call the object service with five parameter. More...

MVariant	Call6 (const MStdString &name, const MVariant &p1, const MVariant &p2, const MVariant &p3, const MVariant &p4, const MVariant &p5, const MVariant &p6)
	Call the object service with six parameter. More...

virtual MVariant	CallV (const MStdString &name, const MVariant::VariantVector &params)
	Call the object service with parameters, given as variant vector. More...

virtual bool	IsPropertyPresent (const MStdString &name) const
	Tell if the property with the given name exists.

virtual bool	IsServicePresent (const MStdString &name) const
	Tell if the service with the given name exists.

virtual MVariant	GetProperty (const MStdString &name) const
	Get the property value using name of the property. More...

virtual void	SetProperty (const MStdString &name, const MVariant &value)
	Set the property using name of the property, and value. More...

virtual void	SetPersistentPropertiesToDefault ()
	Set the persistent properties of the object to their default values. More...

virtual MVariant	GetPersistentPropertyDefaultValue (const MStdString &name) const
	Get the default value of persistent property with the name given. More...

virtual void	SetPersistentPropertyToDefault (const MStdString &name)
	Set the persistent property with the name given to default value. More...

virtual const char *	GetType () const
	Get the name of the type for the object (could be the same as class name).

virtual void	SetType (const MStdString &)
	Intentionally, it will set the name of the type for the object, but the service will not allow setting the name to anything other than the current name. More...

virtual void	Validate ()
	Validate internal structures of the object. More...

Additional Inherited Members
Static Public Member Functions inherited from MObject
static const MClass *	GetStaticClass ()
	Get the declared class of this particular object. More...

static bool	IsClassPresent (const MStdString &name)
	Tells if the given class name is available. More...

Static Public Attributes inherited from MObject
static const MClass	s_class
	Class of MObject.

Protected Member Functions inherited from MChannelSocketBase
	MChannelSocketBase ()
	Construct the abstract socket channel.

Protected Member Functions inherited from MChannel
	MChannel ()
	Construct the channel object from parent class. More...

Protected Member Functions inherited from MCOMObject
	MCOMObject ()
	Object constructor, protected as the class is abstract.

Protected Member Functions inherited from MObject
	MObject ()
	Object constructor, protected as the class is abstract.

void	DoSetPersistentPropertiesToDefault (const MClass *staticClass)
	Set the persistent properties to their default values for one object provided the class for that object. More...

Detailed Description

Implements the channel interface for an UDP datagram socket.

Member Enumeration Documentation

anonymous enum

Enumerator

MaximumUdpDatagramSize

Maximum practical size of UDP datagram.

The theoretical UDP datagram size is 65,535 according to https://en.wikipedia.org/wiki/User_Datagram_Protocol. However, such size is not practical as UDP size is typically selected to be smaller than MTU (Maximum Transmission Unit of the media). According to http://stackoverflow.com/questions/1098897/what-is-the-largest-safe-udp-packet-size-on-the-internet the value 1500 is a good practical maximum, while in reality the size is even smaller to make sure the packet is never reassembled.

Member Function Documentation

virtual void MChannelSocketUdp::Connect ( )

virtual

Establishes connection to the meter using a socket.

Precondition: IsConnected should be false before calling this method. Many OS and program exceptions can be thrown by this method.

Implements MChannelSocketBase.

MStreamSocketUdp& MChannelSocketUdp::GetSocket ( )

inline

Socket object that is used by this channel.

Setting UDP socket object has a feature: what actually happens, this channel's socket is swapped with the given UDP socket. MChannelSocketUdp accepts only MStreamSocketUdp object as input.

MByteString MChannelSocketUdp::ReadDatagram ( )

Receive the datagram.

While the standard Channel data reading methods work just fine with UDP, this UDP specific method guarantees calling a single recvfrom method of socket interface. Because the method bypasses certain logic of the base channel class, unread bytes are not seen when ReceiveDatagram is called.

After receiving the buffer, the address and port from where the data were got are available as GetActualPeerAddress and GetActualPeerPort.

If the datagram was not received for the duration of GetReadTimeout, an exception is thrown. Any other socket related exception is also possible. Just as any channel sending call, the operation is cancellable, in which case MEOperationCancelled is thrown.

Returns: Datagram bytes received.

unsigned MChannelSocketUdp::ReadDatagramBuffer	(	char *	buff,
		unsigned	size
	)

Receive the datagram given as data pointer and size.

While the standard Channel data reading methods work just fine with UDP, this UDP specific method guarantees calling a single recvfrom method of socket interface. Because the method bypasses certain logic of the base channel class, unread bytes are not seen when ReceiveDatagram is called.

After receiving the buffer, the address and port from where the data were got are available as GetActualPeerAddress and GetActualPeerPort.

If the datagram was not received for the duration of GetReadTimeout, an exception is thrown. Any other socket related exception is also possible. Just as any channel sending call, the operation is cancellable, in which case MEOperationCancelled is thrown.

Parameters

buff	Write only buffer pointer of the datagram.
size	Size of the buffer.

Returns: Number of bytes filled in the buffer.

virtual void MChannelSocketUdp::SetSocket ( MStreamSocketBase & other )

virtual

Socket object that is used by this channel.

Setting UDP socket object has a feature: what actually happens, this channel's socket is swapped with the given UDP socket. MChannelSocketUdp accepts only MStreamSocketUdp object as input.

Implements MChannelSocketBase.

virtual void MChannelSocketUdp::WaitForNextIncomingConnection ( bool reinitialize = true )

virtual

When GetAutoAnswer true, wait for the incoming connection without disconnecting the channel.

A typical server application sequence that uses this call:

Connect() // wait for the first incoming connection
loop until interrupted:
    ... communicate ...
    WaitForNextIncomingConnection() // wait for the next incoming connection
end loop
Disconnect()

Parameters

reinitialize When true, the channel is reinitialized at each new incoming connection.

Precondition: Prior to this call, the channel needs to be configured with SetAutoAnswer true, and the connection established with Connect(). Not all channels support Auto Answer mode, and might throw an exception. A timeout exception is thrown if no call is received during the GetAutoAnswerTimeout period.

Reimplemented from MChannel.

void MChannelSocketUdp::WriteDatagram ( const MByteString & bytes )

Send the whole datagram to the UDP socket.

While the standard Channel data writing methods work just fine with UDP, this UDP specific method guarantees calling a single sendto method of socket interface.

The address and port where the data will be sent is determined by GetPeerAddress and GetPeerPort.

If the datagram was not sent for the duration of GetWriteTimeout, an exception is thrown. Any other socket related exception is also possible. Just as any channel sending call, the operation is cancellable, in which case MEOperationCancelled is thrown.

Parameters

bytes Datagram buffer

void MChannelSocketUdp::WriteDatagramBuffer	(	const char *	buff,
		unsigned	size
	)

Send the whole datagram given as data pointer and size into the UDP socket.

While the standard Channel data writing methods work just fine with UDP, this UDP specific method guarantees calling a single sendto method of socket interface.

The address and port where the data will be sent is determined by GetPeerAddress and GetPeerPort.

If the datagram was not sent for the duration of GetWriteTimeout, an exception is thrown. Any other socket related exception is also possible. Just as any channel sending call, the operation is cancellable, in which case MEOperationCancelled is thrown.

Parameters

buff	Constant buffer pointer of the datagram.
size	Size of the buffer.

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Member Function Documentation
