C12Adapter Opensource C++ Interface
|
MChannelCurrentLoop implements methods necessary for handling RS-232 serial port. More...
Public Member Functions | |
| MChannelCurrentLoop () | |
| Construct serial port channel. | |
| virtual | ~MChannelCurrentLoop () |
| Destructor. | |

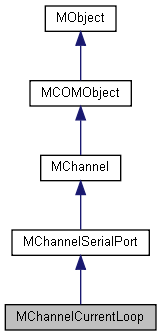

 Public Member Functions inherited from MChannelSerialPort | |
| MChannelSerialPort () | |
| Construct serial port channel. | |
| virtual | ~MChannelSerialPort () |
| Destructor. | |
| virtual void | FlushOutputBuffer (unsigned numberOfCharsInBuffer=UINT_MAX) |
| Ensure that the characters from the output buffer are sent. More... | |
| virtual void | Connect () |
| Establishes the connection to the meter using the serial port. More... | |
| virtual void | Disconnect () |
| Disconnect brings down the connection and releases the serial port resource. | |
| virtual bool | IsConnected () const |
| Returns the current connection state of the serial port channel. | |
| virtual void | WaitForNextIncomingConnection (bool reinitialize=true) |
| When GetAutoAnswer true, wait for the incoming connection without disconnecting the channel. More... | |
| void | SetParameters (unsigned baud, int dataBits, char parity, int stopBits) |
| SetParameters is a convenience function for setting the properties baud rate, number of data bits, parity, and number of stop bits in a single call. | |
| bool | GetDCD () const |
| The current state of the DCD signal of the port. More... | |
| virtual MStdString | GetMediaIdentification () const |
| Return a string that will identify the media through which this channel is talking to. More... | |
| const MStdString & | GetPortName () const |
| void | SetPortName (const MStdString &portName) |
| unsigned | GetBaud () const |
| void | SetBaud (unsigned baud) |
| char | GetParity () const |
| void | SetParity (char p) |
| int | GetStopBits () const |
| void | SetStopBits (int stopBits) |
| int | GetDataBits () const |
| void | SetDataBits (int dataBits) |
| bool | GetCtsFlow () const |
| void | SetCtsFlow (bool isCtsFlow) |
| bool | GetDsrFlow () const |
| void | SetDsrFlow (bool isDsrFlow) |
| bool | GetDsrSensitivity () const |
| void | SetDsrSensitivity (bool isDsrSens) |
| char | GetDtrControl () const |
| void | SetDtrControl (char dtrControl) |
| char | GetRtsControl () const |
| void | SetRtsControl (char rtsControl) |
| MSerialPort & | GetPort () |
| const MSerialPort & | GetPort () const |
| Public Member Functions inherited from MChannel | |
| virtual MChannel * | CreateClone () const |
| Virtual copy constructor, creates the channel, which is a clone of current. More... | |
| virtual | ~MChannel () |
| The destructor is public, and virtual. More... | |
| void | WriteBytes (const MByteString &buffer) |
| Writes the data to the channel, and returns when the last byte has been sent by the software. More... | |
| void | WriteByte (Muint8 b) |
| Writes a byte to the channel, and returns when it has been sent. More... | |
| void | WriteBuffer (const char *buf, unsigned len) |
| Writes the data buffer to the channel, and returns when the last character has been sent by the software (but hardware might still need to do some work). More... | |
| Muint8 | ReadByte () |
| Read a single byte from the channel. More... | |
| void | ReadBuffer (char *buf, unsigned numberToRead) |
| Read an exact number of characters from the channel. More... | |
| void | Unread (const MVariant &byteOrBytes) |
| Return the given byte or bytes to the stream buffer so they get read at the next read operation. More... | |
| void | UnreadBuffer (const char *buff, unsigned size) |
| Return the given bytes to the stream buffer so they get read at the next read operation. More... | |
| MByteString | ReadBytes (unsigned numberToRead) |
| Read bytes directly from the communication channel. More... | |
| MByteString | ReadBytesUntil (const MByteString &terminatingString) |
| Read bytes from the channel until a specified sequence is read. More... | |
| MByteString | ReadBytesUntilAnyByte (const char *finisher, unsigned finisherSize, unsigned headerSize, unsigned footerSize) |
| Read bytes from the channel until a specified sequence is read. More... | |
| MByteString | ReadAllBytes () |
| Read an arbitrary number of characters from the channel, as much as available. More... | |
| void | ClearInputBuffer () |
| Immediately discards all the pending characters from the channel. More... | |
| void | ClearInputUntilSilence (unsigned milliseconds) |
| Keep reading and ignoring input until there is silence. More... | |
| virtual void | CheckIfConnected () |
| Throw an appropriate exception if the channel is not connected. More... | |
| void | CheckIfConnectedConst () const |
| Throw an appropriate exception if the channel is not connected, constant version. More... | |
| unsigned | GetCountBytesSent () const |
| Number of bytes sent through the channel since its creation or since the last ResetCounts(). More... | |
| unsigned | GetCountBytesReceived () const |
| The number of bytes received through the channel since creation or since the last ResetCounts(). More... | |
| void | ResetCounts () |
| Reset channel statistical data, so the counters become zeros. More... | |
| virtual void | WriteToMonitor (const MStdString &message) |
| Synchronously write a message to the monitor, if it is connected. More... | |
| virtual void | CancelCommunication (bool callDisconnect=false) |
| Request canceling of the communication. More... | |
| void | EnterUninterruptibleCommunication (bool notify=true) |
| Enter a communication sequence that shall not be be interrupted with CancelCommunication call. More... | |
| void | LeaveUninterruptibleCommunication (bool notify=true) |
| Leave a communication sequence that shall not be be interrupted with CancelCommunication call. More... | |
| void | CheckIfOperationIsCancelled () |
| Check if the user has requested the termination of the communication, and whether the cancel operation lock is zero. More... | |
| void | Sleep (unsigned milliseconds) |
| Channel version of Sleep, a delay function that is aware of cancel communication event. More... | |
| unsigned | ReadWithTimeout (char *buf, unsigned size, unsigned timeout) |
| Read up to size bytes into buffer using the given timeout. More... | |
| bool | GetAutoAnswer () const |
| void | SetAutoAnswer (bool isAutoAnswer) |
| unsigned | GetAutoAnswerTimeout () const |
| void | SetAutoAnswerTimeout (unsigned timeout) |
| void | SetMonitor (MMonitor::Pointer monitor) |
| MMonitor::Pointer | GetMonitor () const |
| SHOW_INTERNAL bool | GetEcho () const |
| void | SetEcho (bool echo) |
| bool | GetSendEchoBytesToMonitor () const |
| void | SetSendEchoBytesToMonitor (bool doSend) |
| unsigned | GetIntercharacterTimeout () const |
| void | SetIntercharacterTimeout (unsigned timeout) |
| unsigned | GetReadTimeout () const |
| void | SetReadTimeout (unsigned timeout) |
| unsigned | GetWriteTimeout () const |
| void | SetWriteTimeout (unsigned timeout) |
| Public Member Functions inherited from MCOMObject | |
| virtual | ~MCOMObject () |
| Object destructor. | |
| virtual MStdStringVector | GetAllPropertyNames () const |
| Return the list of publicly available properties in MCOM syntax. More... | |
| virtual MStdStringVector | GetAllPersistentPropertyNames () const |
| Return the list of publicly available persistent properties in MCOM syntax. More... | |
| MStdString | GetPersistentPropertyValues (bool onlyNondefaults=false, bool excludeSecurityRelated=false) const |
| Get the string with the list of persistent property names and their values. More... | |
| void | SetPersistentPropertyValues (const MStdString &values) |
| Set the persistent properties for the object using the string with the following format: More... | |
| void | SetPropertyValues (const MDictionary &values) |
| Set the properties for the object using the property list object. More... | |
| void | WritePropertiesToMonitor () |
| Write all non-default values of protocol properties into monitor. More... | |
| MStdString | DoGetPersistentPropertyValues0 () const |
| Get the string with the whole list of persistent property names and their values. More... | |
| MStdString | DoGetPersistentPropertyValues1 (bool onlyNondefaults) const |
| Get the string with the list of persistent property names and their values. More... | |
| Public Member Functions inherited from MObject | |
| virtual | ~MObject () |
| Object destructor. | |
| virtual const MClass * | GetClass () const =0 |
| Get the final class of the object. More... | |
| virtual unsigned | GetEmbeddedSizeof () const |
| For embedded object types, return the size of the class. More... | |
| bool | IsEmbeddedObject () const |
| Tell if the object is of embedded kind. More... | |
| SHOW_INTERNAL MVariant | Call (const MStdString &name, const MVariant ¶ms) |
| Call the object service with parameters, given as variant. More... | |
| MVariant | Call0 (const MStdString &name) |
| Call the object service with no parameters. More... | |
| MVariant | Call1 (const MStdString &name, const MVariant &p1) |
| Call the object service with one parameter. More... | |
| MVariant | Call2 (const MStdString &name, const MVariant &p1, const MVariant &p2) |
| Call the object service with two parameter. More... | |
| MVariant | Call3 (const MStdString &name, const MVariant &p1, const MVariant &p2, const MVariant &p3) |
| Call the object service with three parameter. More... | |
| MVariant | Call4 (const MStdString &name, const MVariant &p1, const MVariant &p2, const MVariant &p3, const MVariant &p4) |
| Call the object service with four parameter. More... | |
| MVariant | Call5 (const MStdString &name, const MVariant &p1, const MVariant &p2, const MVariant &p3, const MVariant &p4, const MVariant &p5) |
| Call the object service with five parameter. More... | |
| MVariant | Call6 (const MStdString &name, const MVariant &p1, const MVariant &p2, const MVariant &p3, const MVariant &p4, const MVariant &p5, const MVariant &p6) |
| Call the object service with six parameter. More... | |
| virtual MVariant | CallV (const MStdString &name, const MVariant::VariantVector ¶ms) |
| Call the object service with parameters, given as variant vector. More... | |
| virtual bool | IsPropertyPresent (const MStdString &name) const |
| Tell if the property with the given name exists. | |
| virtual bool | IsServicePresent (const MStdString &name) const |
| Tell if the service with the given name exists. | |
| virtual MVariant | GetProperty (const MStdString &name) const |
| Get the property value using name of the property. More... | |
| virtual void | SetProperty (const MStdString &name, const MVariant &value) |
| Set the property using name of the property, and value. More... | |
| virtual void | SetPersistentPropertiesToDefault () |
| Set the persistent properties of the object to their default values. More... | |
| virtual MVariant | GetPersistentPropertyDefaultValue (const MStdString &name) const |
| Get the default value of persistent property with the name given. More... | |
| virtual void | SetPersistentPropertyToDefault (const MStdString &name) |
| Set the persistent property with the name given to default value. More... | |
| virtual const char * | GetType () const |
| Get the name of the type for the object (could be the same as class name). | |
| virtual void | SetType (const MStdString &) |
| Intentionally, it will set the name of the type for the object, but the service will not allow setting the name to anything other than the current name. More... | |
| virtual void | Validate () |
| Validate internal structures of the object. More... | |
Additional Inherited Members | |
| Public Types inherited from MChannel | |
| enum | { CANCEL_COMMUNICATION_CHECK_OPTIMUM_INTERVAL = 1000 } |
| Static Public Member Functions inherited from MChannelSerialPort | |
| static MStdStringVector | GetAvailablePortNames (bool addExtraInfo=false) |
| Return a collection of serial port names available at this computer. More... | |
| static MStdString | GetPortType (const MStdString &portName) |
| Get type based on the port name. More... | |
| Static Public Member Functions inherited from MObject | |
| static const MClass * | GetStaticClass () |
| Get the declared class of this particular object. More... | |
| static bool | IsClassPresent (const MStdString &name) |
| Tells if the given class name is available. More... | |
| Static Public Attributes inherited from MObject | |
| static const MClass | s_class |
| Class of MObject. | |
| Protected Member Functions inherited from MChannel | |
| MChannel () | |
| Construct the channel object from parent class. More... | |
| Protected Member Functions inherited from MCOMObject | |
| MCOMObject () | |
| Object constructor, protected as the class is abstract. | |
| Protected Member Functions inherited from MObject | |
| MObject () | |
| Object constructor, protected as the class is abstract. | |
| void | DoSetPersistentPropertiesToDefault (const MClass *staticClass) |
| Set the persistent properties to their default values for one object provided the class for that object. More... | |
MChannelCurrentLoop implements methods necessary for handling RS-232 serial port.
This is still an abstract implementation of MChannel, that facilitates:
The serial port channel exports the following properties through the property dispatch mechanism:
More information on property handling and error treatment is given within descriptions for property accessors and modifiers.
MChannelCurrentLoop inherits all of its properties from MChannelSerialPort and differs only by the default value for the Echo property. This type is provided to allow users to quickly create a direct serial port link through a current loop adapter without having to set the Echo property. Many properties of MChannelCurrentLoop are controlled by the communication protocols; however, an advanced user can override the values set by the protocols at any time to achieve advanced behavior for test purposes.
1.8.11
