MChannelSocketUdpCallback Class Reference

Socket callback channel is MChannelSocketUdp that has Auto Answer enabled by default. More...

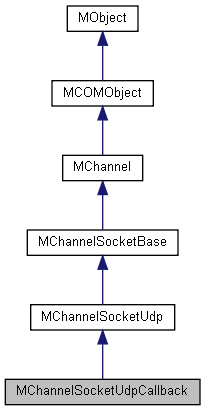

Inheritance diagram for MChannelSocketUdpCallback:

Public Member Functions
	MChannelSocketUdpCallback ()
	Create a channel with initial parameters.
virtual	~MChannelSocketUdpCallback ()
	Destroy channel. More...
Public Member Functions inherited from MChannelSocketUdp
	MChannelSocketUdp ()
	Construct the socket channel.
virtual	~MChannelSocketUdp ()
	Destructor.
virtual void	Connect ()
	Establishes connection to the meter using a socket. More...
virtual void	WaitForNextIncomingConnection (bool reinitialize=true)
	When GetAutoAnswer true, wait for the incoming connection without disconnecting the channel. More...
void	WriteDatagramBuffer (const char *buff, unsigned size)
	Send the whole datagram given as data pointer and size into the UDP socket. More...
void	WriteDatagram (const MByteString &bytes)
	Send the whole datagram to the UDP socket. More...
unsigned	ReadDatagramBuffer (char *buff, unsigned size)
	Receive the datagram given as data pointer and size. More...
MByteString	ReadDatagram ()
	Receive the datagram. More...
const MStreamSocketUdp &	GetSocketConst () const
	Get the constant socket object that is used by this channel.
MStreamSocketUdp &	GetSocket ()
virtual void	SetSocket (MStreamSocketBase &other)
Public Member Functions inherited from MChannelSocketBase
virtual	~MChannelSocketBase ()
	Destructor.
virtual bool	IsConnected () const
	Returns the current state of the socket channel.
virtual void	Disconnect ()
	Partly implemented disconnect method, overridden by children. More...
const MStreamSocketBase &	GetSocketConst () const
	Get the constant socket object that is used by this channel.
MStdString	GetActualLocalAddress () const
	Get the actual address of the local socket as it is known by Sockets. More...
unsigned	GetActualLocalPort () const
	Get the actual port number of the local socket as it is known by Sockets. More...
MStdString	GetActualPeerAddress () const
	Get the actual address of the peer socket as it is known by Sockets. More...
unsigned	GetActualPeerPort () const
	Get the actual port number of the peer socket as it is known by Sockets. More...
virtual void	FlushOutputBuffer (unsigned numberOfCharsInBuffer=UINT_MAX)
	Ensure that the characters from the output buffer are sent. More...
virtual MStdString	GetMediaIdentification () const
	Return a string that identifies the media through which this channel is talking. More...
unsigned	GetAutoAnswerPort () const
void	SetAutoAnswerPort (unsigned port)
const MStdString &	GetAutoAnswerAddress () const
void	SetAutoAnswerAddress (const MStdString &addr)
MStreamSocketBase &	GetSocket ()
const MStdString &	GetPeerAddress () const
void	SetPeerAddress (const MStdString &addr)
unsigned	GetPeerPort () const
void	SetPeerPort (unsigned port)
Public Member Functions inherited from MChannel
virtual MChannel *	CreateClone () const
	Virtual copy constructor, creates the channel, which is a clone of current. More...
virtual	~MChannel ()
	The destructor is public, and virtual. More...
void	WriteBytes (const MByteString &buffer)
	Writes the data to the channel, and returns when the last byte has been sent by the software. More...
void	WriteByte (Muint8 b)
	Writes a byte to the channel, and returns when it has been sent. More...
void	WriteBuffer (const char *buf, unsigned len)
	Writes the data buffer to the channel, and returns when the last character has been sent by the software (but hardware might still need to do some work). More...
Muint8	ReadByte ()
	Read a single byte from the channel. More...
void	ReadBuffer (char *buf, unsigned numberToRead)
	Read an exact number of characters from the channel. More...
void	Unread (const MVariant &byteOrBytes)
	Return the given byte or bytes to the stream buffer so they get read at the next read operation. More...
void	UnreadBuffer (const char *buff, unsigned size)
	Return the given bytes to the stream buffer so they get read at the next read operation. More...
MByteString	ReadBytes (unsigned numberToRead)
	Read bytes directly from the communication channel. More...
MByteString	ReadBytesUntil (const MByteString &terminatingString)
	Read bytes from the channel until a specified sequence is read. More...
MByteString	ReadBytesUntilAnyByte (const char *finisher, unsigned finisherSize, unsigned headerSize, unsigned footerSize)
	Read bytes from the channel until a specified sequence is read. More...
MByteString	ReadAllBytes ()
	Read an arbitrary number of characters from the channel, as much as available. More...
void	ClearInputBuffer ()
	Immediately discards all the pending characters from the channel. More...
void	ClearInputUntilSilence (unsigned milliseconds)
	Keep reading and ignoring input until there is silence. More...
virtual void	CheckIfConnected ()
	Throw an appropriate exception if the channel is not connected. More...
void	CheckIfConnectedConst () const
	Throw an appropriate exception if the channel is not connected, constant version. More...
unsigned	GetCountBytesSent () const
	Number of bytes sent through the channel since its creation or since the last ResetCounts(). More...
unsigned	GetCountBytesReceived () const
	The number of bytes received through the channel since creation or since the last ResetCounts(). More...
void	ResetCounts ()
	Reset channel statistical data, so the counters become zeros. More...
virtual void	WriteToMonitor (const MStdString &message)
	Synchronously write a message to the monitor, if it is connected. More...
virtual void	CancelCommunication (bool callDisconnect=false)
	Request canceling of the communication. More...
void	EnterUninterruptibleCommunication (bool notify=true)
	Enter a communication sequence that shall not be be interrupted with CancelCommunication call. More...
void	LeaveUninterruptibleCommunication (bool notify=true)
	Leave a communication sequence that shall not be be interrupted with CancelCommunication call. More...
void	CheckIfOperationIsCancelled ()
	Check if the user has requested the termination of the communication, and whether the cancel operation lock is zero. More...
void	Sleep (unsigned milliseconds)
	Channel version of Sleep, a delay function that is aware of cancel communication event. More...
unsigned	ReadWithTimeout (char *buf, unsigned size, unsigned timeout)
	Read up to size bytes into buffer using the given timeout. More...
bool	GetAutoAnswer () const
void	SetAutoAnswer (bool isAutoAnswer)
unsigned	GetAutoAnswerTimeout () const
void	SetAutoAnswerTimeout (unsigned timeout)
void	SetMonitor (MMonitor::Pointer monitor)
MMonitor::Pointer	GetMonitor () const
SHOW_INTERNAL bool	GetEcho () const
void	SetEcho (bool echo)
bool	GetSendEchoBytesToMonitor () const
void	SetSendEchoBytesToMonitor (bool doSend)
unsigned	GetIntercharacterTimeout () const
void	SetIntercharacterTimeout (unsigned timeout)
unsigned	GetReadTimeout () const
void	SetReadTimeout (unsigned timeout)
unsigned	GetWriteTimeout () const
void	SetWriteTimeout (unsigned timeout)
Public Member Functions inherited from MCOMObject
virtual	~MCOMObject ()
	Object destructor.
virtual MStdStringVector	GetAllPropertyNames () const
	Return the list of publicly available properties in MCOM syntax. More...
virtual MStdStringVector	GetAllPersistentPropertyNames () const
	Return the list of publicly available persistent properties in MCOM syntax. More...
MStdString	GetPersistentPropertyValues (bool onlyNondefaults=false, bool excludeSecurityRelated=false) const
	Get the string with the list of persistent property names and their values. More...
void	SetPersistentPropertyValues (const MStdString &values)
	Set the persistent properties for the object using the string with the following format: More...
void	SetPropertyValues (const MDictionary &values)
	Set the properties for the object using the property list object. More...
void	WritePropertiesToMonitor ()
	Write all non-default values of protocol properties into monitor. More...
MStdString	DoGetPersistentPropertyValues0 () const
	Get the string with the whole list of persistent property names and their values. More...
MStdString	DoGetPersistentPropertyValues1 (bool onlyNondefaults) const
	Get the string with the list of persistent property names and their values. More...
Public Member Functions inherited from MObject
virtual	~MObject ()
	Object destructor.
virtual const MClass *	GetClass () const =0
	Get the final class of the object. More...
virtual unsigned	GetEmbeddedSizeof () const
	For embedded object types, return the size of the class. More...
bool	IsEmbeddedObject () const
	Tell if the object is of embedded kind. More...
SHOW_INTERNAL MVariant	Call (const MStdString &name, const MVariant &params)
	Call the object service with parameters, given as variant. More...
MVariant	Call0 (const MStdString &name)
	Call the object service with no parameters. More...
MVariant	Call1 (const MStdString &name, const MVariant &p1)
	Call the object service with one parameter. More...
MVariant	Call2 (const MStdString &name, const MVariant &p1, const MVariant &p2)
	Call the object service with two parameter. More...
MVariant	Call3 (const MStdString &name, const MVariant &p1, const MVariant &p2, const MVariant &p3)
	Call the object service with three parameter. More...
MVariant	Call4 (const MStdString &name, const MVariant &p1, const MVariant &p2, const MVariant &p3, const MVariant &p4)
	Call the object service with four parameter. More...
MVariant	Call5 (const MStdString &name, const MVariant &p1, const MVariant &p2, const MVariant &p3, const MVariant &p4, const MVariant &p5)
	Call the object service with five parameter. More...
MVariant	Call6 (const MStdString &name, const MVariant &p1, const MVariant &p2, const MVariant &p3, const MVariant &p4, const MVariant &p5, const MVariant &p6)
	Call the object service with six parameter. More...
virtual MVariant	CallV (const MStdString &name, const MVariant::VariantVector &params)
	Call the object service with parameters, given as variant vector. More...
virtual bool	IsPropertyPresent (const MStdString &name) const
	Tell if the property with the given name exists.
virtual bool	IsServicePresent (const MStdString &name) const
	Tell if the service with the given name exists.
virtual MVariant	GetProperty (const MStdString &name) const
	Get the property value using name of the property. More...
virtual void	SetProperty (const MStdString &name, const MVariant &value)
	Set the property using name of the property, and value. More...
virtual void	SetPersistentPropertiesToDefault ()
	Set the persistent properties of the object to their default values. More...
virtual MVariant	GetPersistentPropertyDefaultValue (const MStdString &name) const
	Get the default value of persistent property with the name given. More...
virtual void	SetPersistentPropertyToDefault (const MStdString &name)
	Set the persistent property with the name given to default value. More...
virtual const char *	GetType () const
	Get the name of the type for the object (could be the same as class name).
virtual void	SetType (const MStdString &)
	Intentionally, it will set the name of the type for the object, but the service will not allow setting the name to anything other than the current name. More...
virtual void	Validate ()
	Validate internal structures of the object. More...

Additional Inherited Members
Public Types inherited from MChannelSocketUdp
enum	{ MaximumUdpDatagramSize = 1500 }
Public Types inherited from MChannel
enum	{ CANCEL_COMMUNICATION_CHECK_OPTIMUM_INTERVAL = 1000 }
Static Public Member Functions inherited from MObject
static const MClass *	GetStaticClass ()
	Get the declared class of this particular object. More...
static bool	IsClassPresent (const MStdString &name)
	Tells if the given class name is available. More...
Static Public Attributes inherited from MObject
static const MClass	s_class
	Class of MObject.
Protected Member Functions inherited from MChannelSocketBase
	MChannelSocketBase ()
	Construct the abstract socket channel.
Protected Member Functions inherited from MChannel
	MChannel ()
	Construct the channel object from parent class. More...
Protected Member Functions inherited from MCOMObject
	MCOMObject ()
	Object constructor, protected as the class is abstract.
Protected Member Functions inherited from MObject
	MObject ()
	Object constructor, protected as the class is abstract.
void	DoSetPersistentPropertiesToDefault (const MClass *staticClass)
	Set the persistent properties to their default values for one object provided the class for that object. More...

Detailed Description

Socket callback channel is MChannelSocketUdp that has Auto Answer enabled by default.

This class is a convenient way of establishing socket servers, however one has to remember this class can only handle one request at a time.

Different from MChannelSocketUdp, this class sets persistent property MChannelSocketUdp::SetAutoAnswer to true by default. This property can be set to false by applications, in which case the behavior of this class will be indistinguishable from its parent.

See also

MChannelSocketUdp

Constructor & Destructor Documentation

virtual MChannelSocketUdpCallback::~MChannelSocketUdpCallback ( )

virtual

Destroy channel.

If channel is connected then it will be disconnected.
